USB 3.0 to SATA 22-Pin Adapter Cable 10cm – for 2.5" SSD/HDD, UASP, 5Gbps
USB 3.0 to SATA 22-Pin Adapter Cable 10cm – for 2.5" SSD/HDD, UASP, 5Gbps
Quantity
Couldn't load pickup availability
USB 3.0 to SATA 22-Pin Adapter Cable (10cm) – Instant External Access for 2.5" Drives
Source a compact, plug-and-play USB 3.0 to SATA 22-pin (7+15) adapter cable from a Hong Kong-based trading company. At just 10cm long, this easy-drive cable turns any bare 2.5" SATA HDD or SSD into a portable external drive—no enclosure, no dock, no external power needed. Built for IT technicians, data recovery specialists, and e-commerce resellers.
Key Specifications
| Parameter | Specification |
|---|---|
| Interface (Host) | USB 3.0 Type-A Male (backward compatible with USB 2.0) |
| Interface (Drive) | SATA 22-Pin (7-pin data + 15-pin power combo) |
| Supported Drives | 2.5" SATA HDD / SSD (SATA I/II/III) |
| Max Transfer Rate | USB 3.0: up to 5Gbps | SATA III: up to 6Gbps (UASP supported) |
| Controller | ASM1053E or equivalent (UASP-accelerated) |
| Power Supply | Bus-powered via USB port (no external adapter for 2.5" drives) |
| Cable Length | 10 cm (approx. 3.9 in) |
| Connector Housing | Molded PVC, strain relief, straight-to-straight |
| LED Indicator | Blue link LED + red activity LED |
| OS Compatibility | Windows 7/8/10/11, macOS 10.10+, Linux kernel 2.6+ |
| Certifications | CE, FCC, RoHS |
Why Choose This 10cm Easy-Drive Cable?
- True Pocket Size: 10cm body means zero clutter on the desk—ideal for field techs carrying 5 drives in one pouch.
- No Enclosure Needed: Directly mates with the drive's 22-pin socket; retrieve data, clone disks, or run diagnostics without mounting.

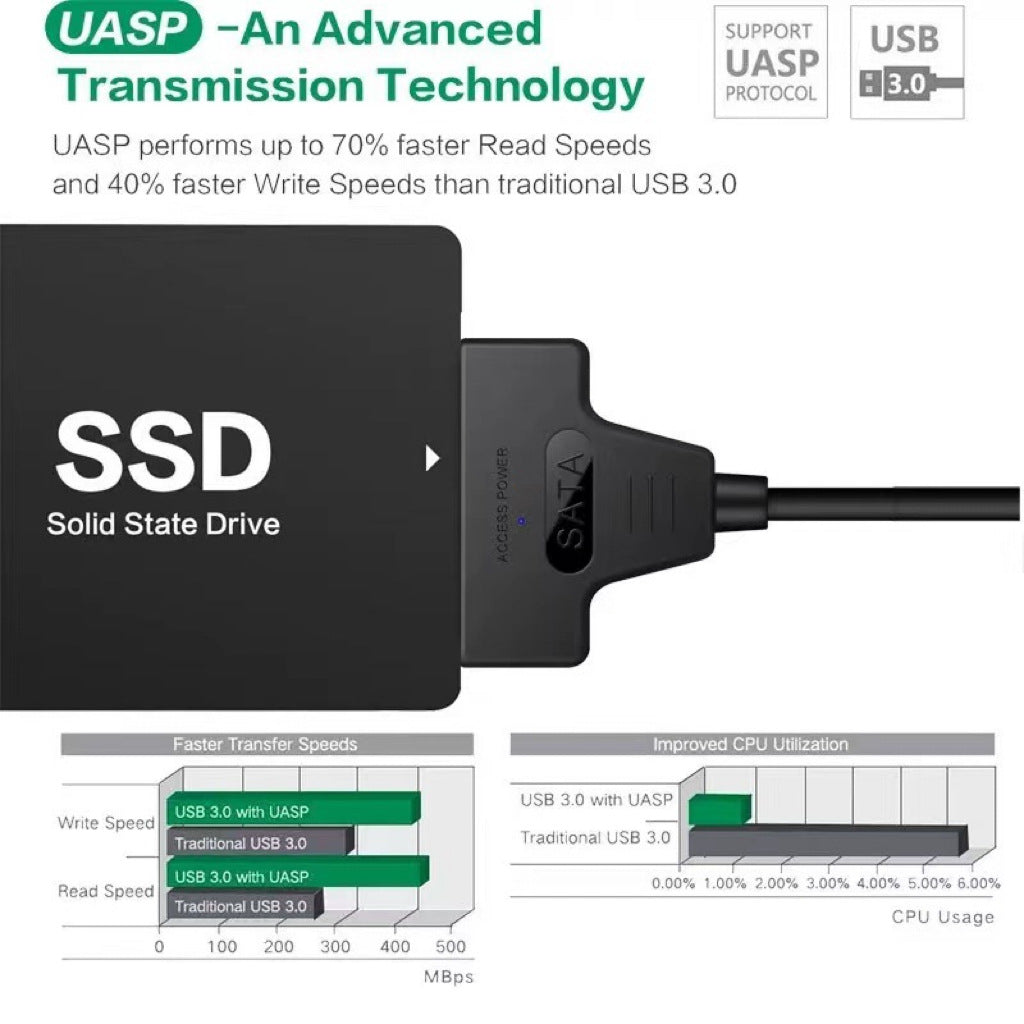

- UASP Boost: With UASP-enabled host, sequential read/write on SSDs jumps noticeably vs. BOT-only cables.
- Bus-Powered Convenience: Standard 2.5" SATA drives draw 5V from USB—no wall wart, no Y-cable for most 5400/7200rpm HDDs.
- OEM/ODM Ready: Custom cable length (10/20/30cm), connector color, logo printing on PVC mold, and polybag/blister packaging.
Typical Use Cases
- Data recovery from dead laptops (pull 2.5" SATA disk, plug in, copy)
- SSD migration / disk cloning for repair shops
- Quick SMART test or format via USB boot
- Turn old laptop HDD into temp backup drive
Note: This cable is designed for 2.5" SATA drives only. 3.5" desktop HDDs require 12V and an external power adapter—use a full IDE/SATA converter for those.
MOQ: 100 pcs | Lead Time: 7–12 days | Shipping: Worldwide ex-Hong Kong, DDP available
