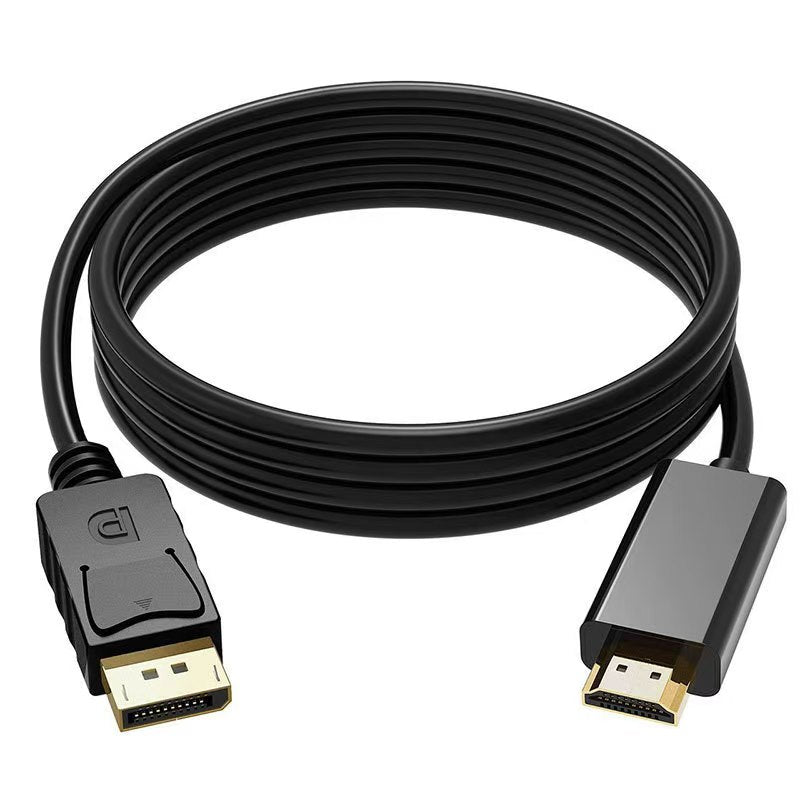

DisplayPort to HDMI Port Cable 1m, DP Male port1.2 to HDMI Male 1.4, 4K@30Hz / 1080p@60Hz
DisplayPort to HDMI Port Cable 1m, DP Male port1.2 to HDMI Male 1.4, 4K@30Hz / 1080p@60Hz
Quantity
Couldn't load pickup availability
DisplayPort to HDMI Port Cable – 1 Meter
This DP to HDMI cable delivers a stable, high-quality video and audio connection from DisplayPort sources to HDMI displays. It is a one-way signal converter: from DP output (PC/GPU) to HDMI input (monitor/TV). No external power, no drivers, and no separate adapter needed—just plug and play.
|
Item
|
Specification
|
|---|---|
|
Product
|
DisplayPort to HDMI Port Cable
|
|
Connector A
|
DisplayPort Male (gold-plated)
|
|
Connector B
|
HDMI Type-A Male (gold-plated)
|
|
Direction
|
DP → HDMI (unidirectional)
|
|
Standard
|
DP 1.2 / HDMI 1.4
|
|
Max Resolution
|
4K@30Hz / 1080p@60Hz
|
|
Audio Support
|
8-ch LPCM, Dolby TrueHD, DTS-HD
|
|
Conductor
|
30AWG OFC
|
|
Shielding
|
Dual-layer (foil + braid)
|
|
Jacket
|
PVC
|
|
Length
|
1 m (standard)
|
|
Custom Length
|
0.5–5 m
|
|
Color
|
Black / White / Custom
|
|
Certification
|
CE / FCC / RoHS / REACH (optional)
|
|
MOQ
|
100 pcs (mixed SKU negotiable)
|
|
Lead Time
|
7–15 days
|
|
Shipping
|
EXW / FOB Shenzhen / DDP
|
Key Features
- Direction: DisplayPort Output → HDMI Input (unidirectional, not reversible)
- Standard: DP 1.2 / HDMI 1.4
-
Resolution Support:
- 4K UHD (3840×2160) @ 30Hz
- 2K QHD (2560×1440) @ 60Hz
- Full HD (1920×1080) @ 60Hz
- Audio Support: 8-channel LPCM, Dolby TrueHD, DTS-HD Master Audio
- Connector A: DisplayPort Male (gold-plated, latch design)
- Connector B: HDMI Type-A Male (gold-plated)
- Conductor: 30AWG OFC (oxygen-free copper)
- Shielding: dual-layer (foil + braid)
- Jacket: PVC, flexible & anti-tangle
- Length: 1 m (standard), custom lengths available
- Color: black (white / gray optional)
Typical Applications
- Desktop PCs, GPUs, workstations → HDMI monitors
- Laptops with Mini DP / DP output → HDMI TVs & projectors
- Docking stations → conference room displays
- Digital signage & video walls
- Home theater & gaming setups
Customization for B2B Orders
- Length: 0.5 / 1 / 1.5 / 2 / 3 / 5 m
- Connector finish: gold / nickel plating
- Jacket color: black, white, gray, custom Pantone
- Packaging: polybag, blister, paper box, bulk carton
- Logo: OEM silk-screen, laser engraving, heat shrink label
- Certification: CE / FCC / RoHS / REACH (optional by batch)
Quality & Testing
Every production lot can be inspected for:
- Continuity & pin mapping
- Signal integrity & EDID handshake
- Plug retention & latch function
- Bending & flex life
- Appearance & molding defects
