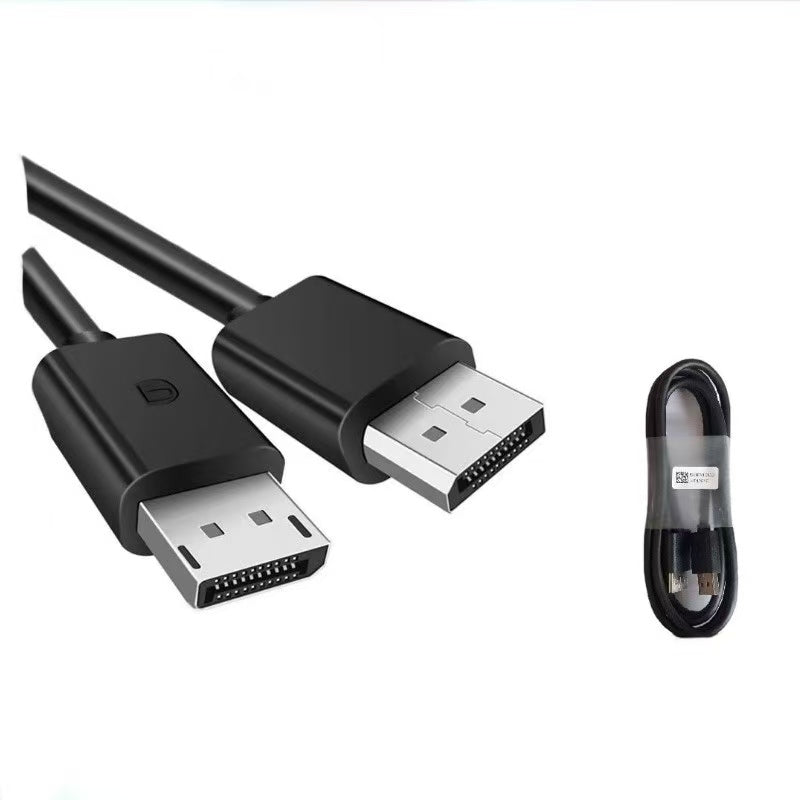

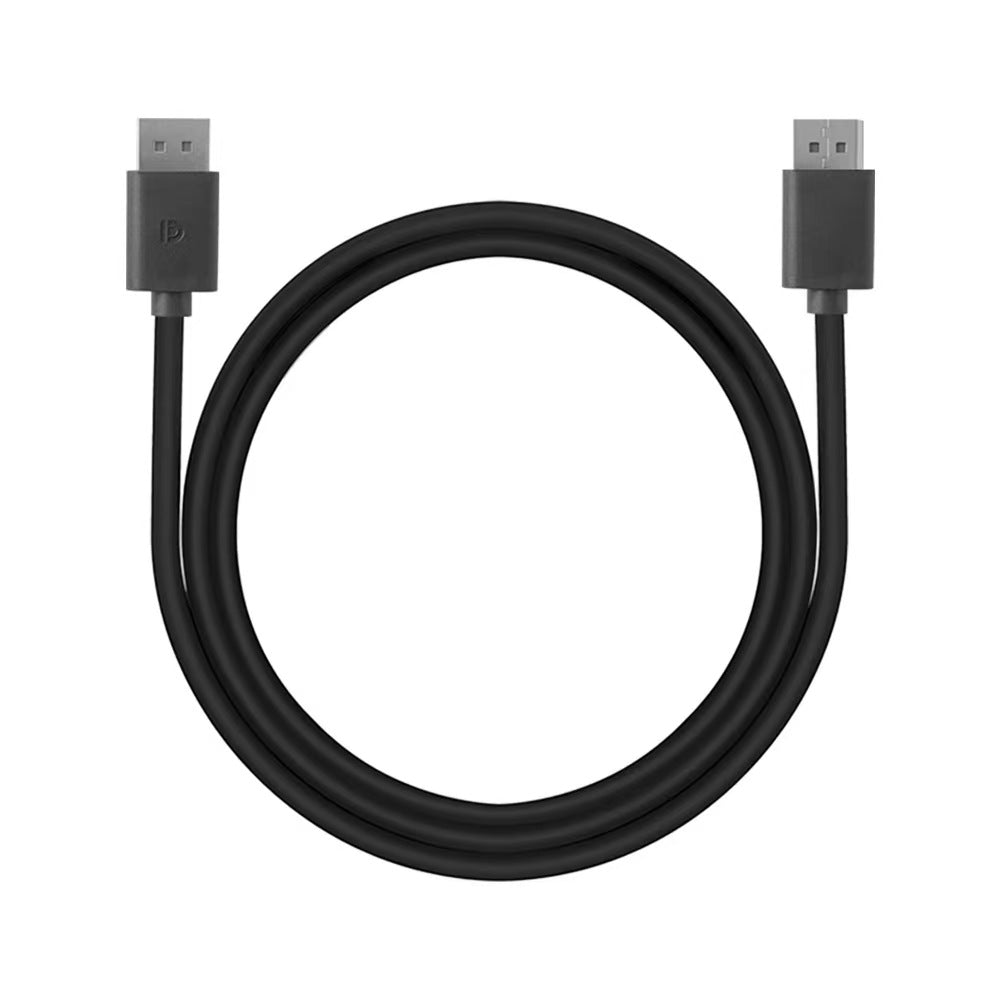

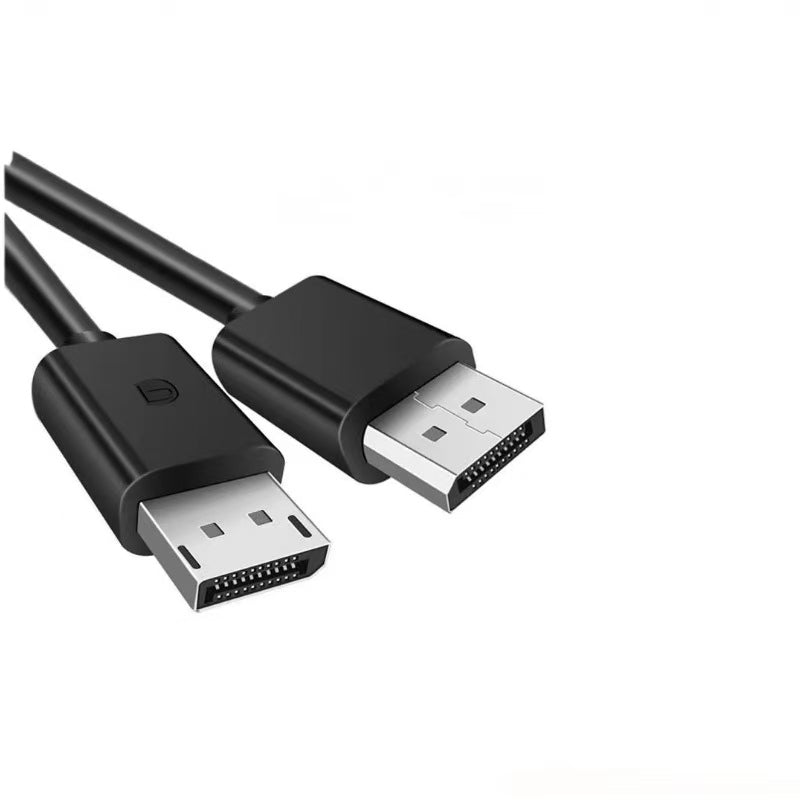

DisplayPort 1.2 Cable 1m, DP to DP Male 4K@60Hz / 2K@144Hz, Gold-Plated, Black
DisplayPort 1.2 Cable 1m, DP to DP Male 4K@60Hz / 2K@144Hz, Gold-Plated, Black
Quantity
Couldn't load pickup availability
DisplayPort 1.2 to DisplayPort Cable – 1 Meter
This DP to DP cable delivers reliable, high-bandwidth video and audio transmission between DisplayPort-equipped sources and displays. Built with 28AWG oxygen-free copper conductors, triple-layer shielding, and gold-plated connectors, it ensures stable signal integrity for demanding office, design, and gaming environments.
|
Item
|
Specification
|
|---|---|
|
Product
|
DisplayPort 1.2 to DisplayPort Cable
|
|
Connector A
|
DisplayPort Male (gold-plated)
|
|
Connector B
|
DisplayPort Male (gold-plated)
|
|
Standard
|
DP 1.2 (compatible with DP 1.1 / 1.0)
|
|
Bandwidth
|
21.6 Gbps
|
|
Max Resolution
|
4K@60Hz / 2K@144Hz / 1080p@240Hz
|
|
Conductor
|
28AWG OFC
|
|
Shielding
|
Triple-layer (foil + braid + drain)
|
|
Jacket
|
PVC, CL2
|
|
Length
|
1 m (standard)
|
|
Custom Length
|
0.5–5 m
|
|
Color
|
Black / White / Custom
|
|
Certification
|
DP / RoHS / REACH / CE (optional)
|
|
MOQ
|
100 pcs (mixed SKU negotiable)
|
|
Lead Time
|
7–15 days
|
|
Shipping
|
EXW / FOB Shenzhen / DDP
|
Key Features
- Standard: DisplayPort 1.2 (backward compatible with DP 1.1 / 1.0)
- Bandwidth: up to 21.6 Gbps
-
Resolution & Refresh:
- 4K UHD (3840×2160) @ 60Hz
- 2K QHD (2560×1440) @ 144Hz
- Full HD (1920×1080) @ 240Hz
- Audio Support: multi-channel digital audio (up to 8 channels)
- Connector: DP Male to DP Male, gold-plated, locking latch
- Conductor: 28AWG OFC (oxygen-free copper)
- Shielding: triple-layer (foil + braid + drain wire)
- Jacket: PVC, CL2 rated, flexible & durable
- Length: 1 m (standard), custom lengths available
- Color: black (white / gray optional)
Typical Applications
- Desktop PCs, workstations, GPU graphics cards
- 4K/2K monitors, CAD/CAM displays, medical imaging screens
- Conference room projectors & video walls
- Gaming setups requiring high refresh rates
- Docking stations & KVM switches
Customization for B2B Orders
- Length: 0.5 / 1 / 1.5 / 2 / 3 / 5 m
- Connector finish: gold / nickel plating
- Jacket color: black, white, gray, custom Pantone
- Packaging: polybag, blister, paper box, bulk carton
- Logo: OEM silk-screen, laser engraving, heat shrink label
- Certification: DP certified, RoHS, REACH, CE (optional by batch)
Quality & Testing
Every production lot can be inspected for:
- Continuity & pin mapping
- Signal integrity & eye diagram (sample basis)
- Plug retention & latch function
- Bending & flex life
- Appearance & molding defects
